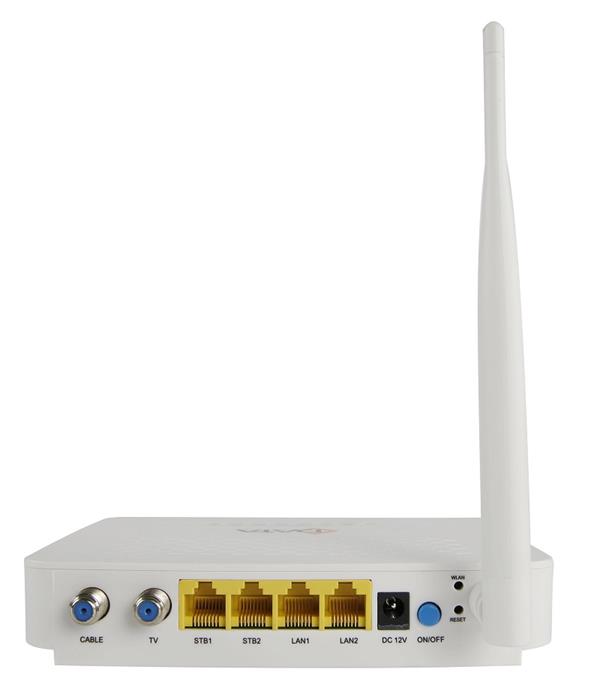

Wodaplug • EOC1121R4WL-R indoor SLAVE • Koaxiální ethernet adaptér 600Mbps, WiFi

Jednotka EoC slave s WiFi je určena pro koncové uživatele, kteří ji chtějí využít i jako WiFi router s NAT a nebo Brdige, spolupracuje s EoC master jednotkou na navázání spojení a přenosu sítě Ethernet přes koaxiální rozvod. Z mixed signálu opět převede data na výstup Ethernet+WiFI a signál TV na výstup TV. Vlastní IP adresa.

Description
Wodaplug EoC product is focused on the use of existing cable television (CATV) infrastructure for Internet access or broadband data transmission for the purpose of being compatible with the existing CATV (or sometimes satellite television) broadcast signals simultaneously transmitted on the same cable.

EOC1121R4 series are for NGB next generation broadcast network, especially for Cable TV Operators. It is an advanced end equipment to carry out family bandwidth data access. EOC1121R4 is based on P1901 International Standard Protocol and HomePlug AV Protocol, with low-band and support big line-loss, long transmission distance.

The built in WiFi based on the single chip AR9331 which integrates an 802.11a 1x1 MAC radio with internal PA and LNA. It supports 802.11n operations up to 300Mbpcs for 40MHz channel respectively, and IEEE 802.11b/g data rates.

Based on REALTEK chipset solution of HomePlug AV and 11n WiFi technology
Work at low frequency between 7.5MHz~65MHz without influence on CATV service
Physical layer speed is 600Mbps and Max MAC layer throughout is 320Mbps
Support data encryption for both uplink and downlink
Support 4*10/100Mbps Ethernet ports auto-negotiation function
Support slave(CPE) isolation
Support VLAN configuration based on slave’s Ethernet ports and 802.1q
Support bandwidth(speed) limitation for both uplink and downlink
Support QoS configuration based on slave port or VLAN
Support broadcast storm control
Support data packages count
Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on
Support WEB,CLI and SNMP management
Support on-line upgrading


default IP for management : http://192.168.1.1


For the software, there is no difference between the old and new slave. Please read new users guide. The full access and complete setting in Web could be realized via the admin access.
The new version wifi slave is more flexible in the application than before. It can controls the STB1 and STB2 ports which used as the Ethernet ports to setting the VLAN, rate-limiting, configuration,etc.
The LAN1 and LAN2 have the router feature which support the PPPoE. Moreover, The two mode can work at the same time.


Specification
Item Specification - Model Number - EOC1121R4WL-R
Chipset Reaktek, RTL8198
Protocol EOC standard : HomePlug AV/ IEEE P1901(Draft); Etherent protocol > IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,HTTP, SNMP, TELNET
Phisycal Speed 600Mbps
Modulation Bandwidth 7.5 MHz~65 MHz
Modulation Technology OFDM-2690-carriers,4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
Max. Slave number 256
Encryption mode 128-bit AES encrypted
VLAN Support max. 16 VLANs
Limitation of port speed Support minimum 64Kbps granularity
QoS Support VLAN priority
Working mode CSMA/CA
Multicast support Support IGMP manage Multicast diagram
Management mode Support SNMP, WEB, CLI multi-managed mode

Interface Features
Ethernet Interface 4*10/100M Ports
Coax. Cable Interface 1*Female Connector, IP signal output


LED Indication
Ethernet Network connection indicator
Power Power connection indicator
Data Cable connection indicator

RF Performance
Impedance 75Ohm
Transmit Power 0±3dBm
Reflection loss >16dB
Insertion loss less than 1dB
Receiving sensitivity -65dB

Electrical Characteristics
Power Consumption ?5W
Power Supply 12VAC/5A

Environment Features
Working Temperature 0?~50?
Storage Temperature -40?~80?
Working Humidity 10%~90%, non-condensation
Storage Humidity 5%~90%, non-condensation
Environmental standards RoHS

Physical characteristics
Product Size 160*120*28.5mm
Product Weight N.W.: 0.5kg G.W.: 0.52kg
WiFi Specification
Operating Mode > Router or Bridge
Frequency Range : 2,412-2,472GHz
Transmitting Speed : 11n [135Mbps]:standard + 802.11b/g standard /auto-negotiation/
Operating channels qty : 13
Spread Spectrum : DSSS, CCK and OFDM
Coding BPSK, QPSK, 16QAM and 64QAM
RF Power : 802.11b: 16.5±1dBm , 802.11g: 13±1dBm @ 54 Mbps; 14±1dBm @ 48 Mbps; 15±1dBm @ 6 ~ 36 Mbps ; 802.11n: 13±1dBm @ 54 Mbps; 14±1dBm @ 48 Mbps; 15±1dBm @ 6 ~ 36 Mbps
antenna : 4dBi (fixed)
RF Receiving Sensitivity : 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 65 MbpsHT40; -61dBm @ 135 MbpsHT40
Encryption Mode 802.11i Security: WEP-64/128, TKIP(WPA-PSK) and AES(WPA2-PSK)
