Huawei • H902PISB • AC (220/110V) Power adapter pro OLT MA5800 X2

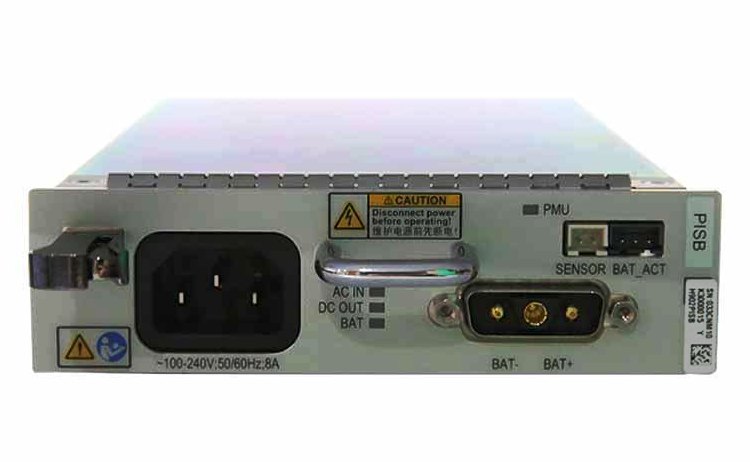

Huawei PISB Power Module is AC power board for MA5800 X2 OLT

Uveřejněná cena je orientační koncová cena.
Aktuální VO cenu vám na vyžádání rádi obratem sdělíme.

Huawei PISB Power Module is an AC power board, which is composed of an AC power board and a monitoring board.
It supports lead-acid battery backup and supplies power to the equipment.
The AC power board has functions such as over-current protection, output over-voltage protection, short-circuit protection, and over-temperature protection.
At the same time, the monitoring board supports complete power system management, battery management, and some environmental monitoring functions.

Specifications:
• 1 channel of 220 V AC or 110 V AC input • Rated output power: 600 W • 1 lead-acid or iron lithium battery for backup power • Input overcurrent protection • Input power monitoring • Temperature query and high-temperature alarm • Brand: Huawei
• Model: H901PISB
• Description: AC power Board,Power Backup
• Software and Hardware Attributes: Hardware
• UOM: PCS
• Pack Weight(kg): 1.12kg
• Net Dimension(D*W*H mm): 250*130*35
• Typic Power(W): 25
• Product Line: Enterprise Network
• Sub Product Family: GigaFiber&GigaCoax

Huawei PISB Power Module Product Features:
• Huawei PISB AC power board is used for MA5800-X2
• 1 channel of 220 V AC or 110 V AC input
• Rated output power: 600 W
• 1 battery for power backup
• Input overcurrent protection
• Input power monitoring
• Temperature query and high-temperature alarm
• Support one 220V AC or 110V AC input.
• Support rated output power of 600W.
• Support one-way battery access to backup power.
• Support input current limit protection.
• Support input power detection.
• Support temperature report and high temperature alarm.
